Noblelift · Forklifts
FE4P60-70-80N

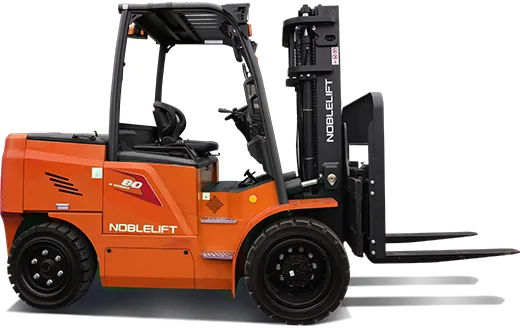

N Series Electric Forklift
- Load capacity/rated load6000 / 7000 / 8000 kg
- Lift height3000 mm
- Service weight incl. battery(see line 6.5)9600（8930） / 10300(9400) / 11900(11200) kg
- Battery voltage,nominal capacity K5lead-acid:96/720(810/945 Optional) Lion:96/412(554/618/840 Optional) V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the FE4P60-70-80N range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | / | FE4P60N | FE4P70N | FE4P80N |
|---|---|---|---|---|
| Load capacity/rated load | kg | 6000 | 7000 | 8000 |
| Service weight incl. battery(see line 6.5) | kg | 9600（8930） | 10300(9400) | 11900(11200) |
| Lift height | mm | 3000 | 3000 | 3000 |
| Overall length | mm | 4407 | 4412 | 4427 |
| Turning radius | mm | 2980 | 2980 | 2980 |
| Battery voltage,nominal capacity K5 | V/Ah | lead-acid:96/720(810/945 Optional) Lion:96/412(554/618/840 Optional) | lead-acid:96/720(810/945 Optional) Lion:96/412(554/618/840 Optional) | lead-acid:96/720(810/945 Optional) Lion:96/412(554/618/840 Optional) |
