PUDU
PUDU MP2000
PUDU AI-Native Pallet Handling Robot
- Max. load2000 kg
- Max. lift height200±5 mm
PUDU · Automation
PUDU T300 Industrial Delivery Robot
PUDU T300 Series · Industrial Delivery Robot
- Maximum load300 kg
- Max. speed1.2 m/s
- Path clearance (Standard)≥60 cm
- Charging time2 h (0% to 90%)
Supplied by Pristine Material Handling, authorised PUDU dealer. Deployment is planned around your site and workflow at survey stage.
Overview
About this model

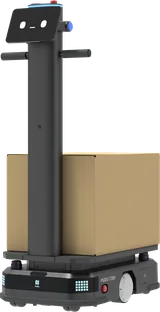

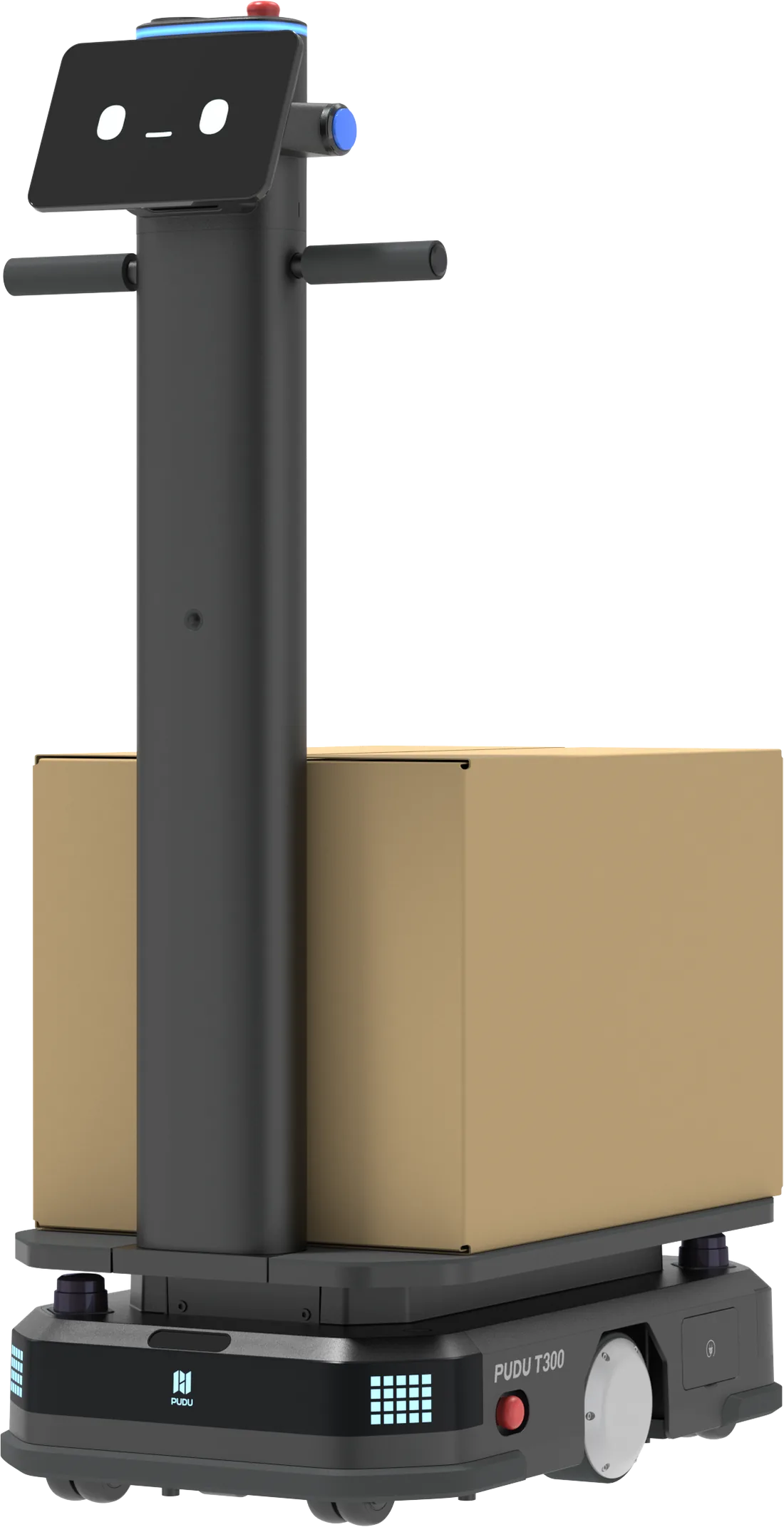

If people on your site spend part of every shift pushing trolleys of parts, work in progress and inspection samples between production lines and quality control, the PUDU T300 is designed to take over those runs. PUDU describes it as a delivery robot for material transport in industrial environments: an autonomous mobile robot for factories and warehouses that carries up to 300 kg and, according to PUDU, does not depend on preset physical path markers, so it can adapt as your layout changes.
PUDU's product page lists two models. The T300 Standard (WTID01) carries material boxes and similar loads on its deck. The T300 Lifting (WTIDL1) drives under a castor rack, lifts it 60 mm and delivers it, which PUDU positions for fully automated delivery with loading and unloading. Both share the same 835 mm × 500 mm × 1350 mm body, 1.2 m/s maximum speed and 2 h (0% to 90%) charging time. PUDU's 2025 series introduction also lists Tray, Towing and Conveyor versions, which we can talk through with you. Ask us about availability.
We start from your workflow rather than the robot: what moves, from where to where, how often, and through which doors and lifts. From there we recommend the version and set-up that suits, whether that is the T300 or another model in our automation range, where PUDU positions the PUDU T150 for lighter payloads and the PUDU T600 for heavier ones. Pristine Material Handling is an authorised PUDU dealer with national engineering coverage. To ask about availability and find out whether the T300 fits your site, request a quote and we will start with a specification and survey.
Explore more: All automation robots · Service and support
Features
What the PUDU T300 does
Marker-free navigation
PUDU VSLAM+ combines visual and laser SLAM, and PUDU states the T300 needs no preset physical path markers. According to PUDU, it can map areas up to 200,000 m², work under ceilings up to 30 m and adapt to layout changes without time-consuming reconfiguration.
Standard deck or Lifting rack
The Standard (WTID01) carries loads on its deck; the Lifting (WTIDL1) drives under a castor rack and lifts it 60 mm. PUDU publishes a standard rack and dimensional limits for custom racks, so we can check whether your own racks fit at survey.
Safety sensors and stops
PUDU states the T300 complies with ISO 3691-4. It uses lidar, depth cameras, collision sensors and emergency stops, and PUDU says it can identify low-lying and suspended obstacles and recognise yellow safety lines on the floor.
Run-time and charging
PUDU's product page quotes a run-time of 8 h at full load and 12 h with no load, with a 2 h charge from 0% to 90%. PUDU lists a 30 Ah lithium-ion battery that can be swapped, or the robot can recharge automatically on a charging pile.
Lift, door and pager integration
PUDU lists lift and e-gate control, pager call and management through the Pudu Link app. According to PUDU, its scheduler can dispatch up to 20 robots in one environment and detour automatically around congestion.
Three delivery modes
PUDU lists three delivery modes. In Auto-delivery mode the T300 navigates autonomously to designated destinations. PUDU's Follow mode uses visual recognition so several robots can queue and follow one another, and Power-assist mode helps an operator push it by hand for manual tasks or map building.
Full specifications
Technical data
Manufacturer data for each version of the PUDU T300. Ask us for the full specification with your quotation.
| Specification | T300 Standard (WTID01) | T300 Lifting (WTIDL1) |
|---|---|---|
| Machine weight | 65 kg | 81 kg |
| Maximum load | 300 kg | 300 kg (see note) |
| Lifting height | — | 60 mm |
| Max. speed | 1.2 m/s | 1.2 m/s |
| Cruise speed (adjustable) | 0.2–1.2 m/s | 0.2–1.2 m/s |
| Path clearance | ≥60 cm | Determined by load size |
| Threshold overcoming height | 20 mm | 20 mm |
| Groove crossing width | 35 mm | 35 mm |
| Run-time (no load) | 12 h | 12 h |
| Run-time (full load) | 8 h | 8 h |
| Dimensions | 835 mm × 500 mm × 1350 mm | 835 mm × 500 mm × 1350 mm |
| Chassis dimensions | 780 mm × 500 mm × 240 mm | 780 mm × 500 mm × 240 mm |
| Charging time | 2 h (0% to 90%) | 2 h (0% to 90%) |
| Battery | 30 Ah, swappable lithium-ion | 30 Ah, swappable lithium-ion |
| Operating voltage | DC 20.8 V–29.2 V | DC 20.8 V–29.2 V |
| Charging methods | Swappable battery with wired charger, or automatic recharging on a charging pile | Swappable battery with wired charger, or automatic recharging on a charging pile |
| Charger input / output | AC 100 V–240 V, 50/60 Hz / 29.2 V, 15 A | AC 100 V–240 V, 50/60 Hz / 29.2 V, 15 A |
| Navigation methods | VSLAM & Lidar SLAM | VSLAM & Lidar SLAM |
| Mapping area (PUDU states) | Up to 200,000 m² | Up to 200,000 m² |
| Ceiling height for navigation (PUDU states) | Up to 30 m | Up to 30 m |
| Sensors | 360° lidar at the chassis diagonals; two front RGBD cameras; front and rear collision switches; top view camera; front view camera | 360° lidar at the chassis diagonals; two front RGBD cameras; front and rear collision switches; top view camera; front view camera |
| Emergency stops | On the top and on both sides of the base | On the top and on both sides of the base |
| Safety standard | PUDU states compliance with ISO 3691-4 | PUDU states compliance with ISO 3691-4 |
| Delivery modes | Auto-delivery, Follow, Power-assist | Auto-delivery, Follow, Power-assist |
| Software modes | Delivery, Cruise | Delivery, Cruise, Lifting |
| Site integration | Lift (elevator) control, e-gate control, pager call, Pudu Link app | Lift (elevator) control, e-gate control, pager call, Pudu Link app |
| Multi-robot scheduling (PUDU states) | Up to 20 robots in one environment; automatic detour for traffic congestion | Up to 20 robots in one environment; automatic detour for traffic congestion |
| Expansion interfaces | 24 V power output (max. 2.5 A); USB 2.0; IO; Nano SIM slot; OTG (debugging) | 24 V power output (max. 2.5 A); USB 2.0; IO; Nano SIM slot; OTG (debugging) |
| Screen | 10.1-inch LCD touch screen | 10.1-inch LCD touch screen |
| Operating system | Android | Android |
| Speakers | 10 W × 2 stereo | 10 W × 2 stereo |
| Working environment | 0 °C to 40 °C; ≤ 85% RH | 0 °C to 40 °C; ≤ 85% RH |
| Storage environment | -20 °C to 60 °C; ≤ 85% RH | -20 °C to 60 °C; ≤ 85% RH |
| Operating altitude | < 2000 m | < 2000 m |
| Floor surface | Indoor environment with flat, smooth surfaces | Indoor environment with flat, smooth surfaces |
| Minimum aisle width for U-turn, unloaded (default setting) | 1073 mm | — |
| Minimum pass-through width when lifting (default PUDU rack) | — | 1000 mm |
| Minimum aisle width for lifting and turning (default PUDU rack) | — | 1328 mm |
| PUDU standard rack (L × W × H) | — | 900 mm × 660 mm × 308 mm |
| Rack load surface (L × W) | — | 820 mm × 610 mm |
| Rack base height from the ground | — | 275 mm |
| Rack weight | — | 15.7 kg |
| Custom rack limits | — | Length 80–120 cm; width 40–100 cm; bottom height 27–28 cm; post width 1–5 cm; width between posts on the robot's entry side ≥ 60 cm |
- Specifications as published by PUDU Robotics; the rating for your load and site is confirmed at survey.
- Path clearance: PUDU gives 60 cm for the T300 except the lifting version, where path clearance is determined by load size.
- The lifting feature is only available on the WTIDL1 model (PUDU Operation Guide).
- Maximum load: PUDU's product page lists 300 kg for both models, but PUDU publications give differing load figures for the Lifting model (WTIDL1). We confirm the rated load for your rack and goods at survey.
- Run-time (full load): 8 h is the figure on PUDU's product page; PUDU's Operation Guide V1.0.2 gives 6 h at maximum load.
- Battery: 30 Ah is the figure in PUDU's Operation Guide V1.0.2 and product brochures; another PUDU-published document for the WTIDL1 lists 27.5 Ah. We confirm the battery fitted when we specify.
- Aisle widths are the default values shown in the run settings in PUDU's Operation Guide V1.0.2.
- PUDU's June 2025 series introduction also lists Tray, Towing and Conveyor versions with their own specifications. Ask us about availability.
FAQs
Common questions
What can the PUDU T300 carry?
According to PUDU's product page, the Standard model (WTID01) carries up to 300 kg on its deck: material boxes and similar loads for line-side and work-in-progress deliveries. The Lifting model (WTIDL1) collects castor racks and lifts them 60 mm; PUDU's standard rack has an 820 mm × 610 mm load surface, and custom racks can be used within PUDU's published limits. PUDU publications give differing load figures for the Lifting model, so we confirm the rated load for your rack and goods at survey.
How does the T300 navigate around our site?
It uses VSLAM and lidar SLAM, which PUDU calls VSLAM+, rather than preset physical path markers. The site is mapped with PUDU's built-in mapping tool, and the robot then delivers to designated destinations on that map. PUDU states the system can map areas up to 200,000 m² and work under ceilings up to 30 m. The robot also carries 360° lidar, depth cameras, collision switches and emergency stops for running in aisles shared with people.
How is it charged?
PUDU gives a charging time of 2 h (0% to 90%). There are two options: swap the 30 Ah lithium-ion battery and charge it on PUDU's wired charger, or let the robot recharge automatically on a charging pile. The charger takes AC 100 V–240 V, 50/60 Hz. PUDU's product page quotes a run-time of 8 h at full load and 12 h with no load.
What does our site need?
PUDU specifies an indoor environment with flat, smooth floors, and its manual says the robot should not be used where there are steps or steep slopes. It crosses thresholds up to 20 mm and grooves up to 35 mm. The Standard model needs a path clearance of at least 60 cm; for the Lifting model it is determined by load size (PUDU's default settings show a minimum pass-through width of 1000 mm with its standard rack). The working temperature range is 0 °C to 40 °C. If routes run through lifts or gated doors, tell us, as PUDU offers lift and e-gate control. We check all of this at survey.
How do we arrange a survey or find out if the T300 suits us?
Start with an enquiry: request a quote or call 0131 605 0238 (Monday to Friday, 8am–4pm), and tell us what you move, where to and how often. We then specify and survey, remotely or with a site visit, and send a written quotation with full specification. Delivery and handover include operator familiarisation. Ask us about availability when you enquire.
