Noblelift · Forklifts
CPC(D)20-38

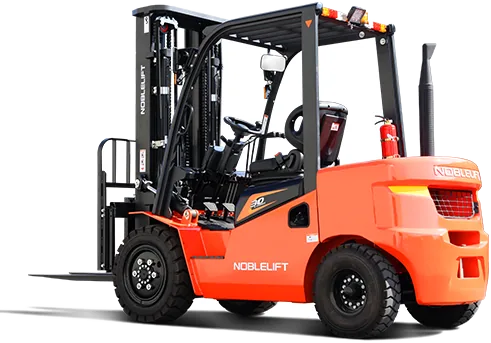

A Series IC Forklift
- Load capacity/rated load2000 / 2500 / 3000 / 3500 kg
- Lift height3000 mm
- Overall length（Not including cargo fork）2628 / 2770 / 2835 / 2875 mm
- Overall width (Frame / tires)1150/1163 / 1195/1228 mm
- Load centre distance500 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the CPC(D)20-38 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | / | CPC(D)20 | CPC(D)25 | CPC(D)30 | CPC(D)35 | CPC(D)38 |
|---|---|---|---|---|---|---|
| Drive:electric(battery or mains), diesel,petrol gas,manual ) | / | Diesel | Diesel | Diesel | Diesel | Diesel |
| Type of operation (hand, pedestrian,standing, seated, order-picker) | / | seated | seated | seated | seated | seated |
| Load capacity/rated load | kg | 2000 | 2500 | 3000 | 3500 | 3800 |
| Load centre distance | mm | 500 | 500 | 500 | 500 | 500 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Overall length（Not including cargo fork） | mm | 2628 | 2628 | 2770 | 2835 | 2875 |
| Overall width (Frame / tires) | mm | 1150/1163 | 1150/1163 | 1195/1228 | 1195/1228 | 1195/1228 |
