Noblelift · Forklifts
FE3R08-12N

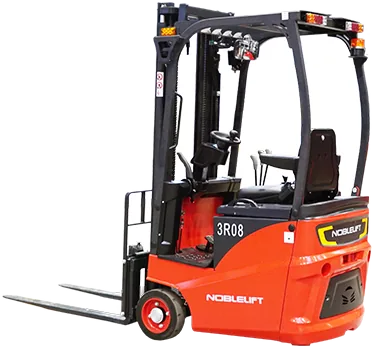

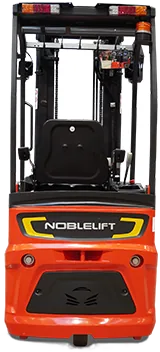

N Series 3 Wheel Electric Forklift
- Load capacity/rated load800 / 1000 / 1200 kg
- Lift height3000 mm
- Service weight incl. battery1800 / 1910 / 2080 kg
- Battery voltage,nominal capacity K524/280 / 24/420 V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the FE3R08-12N range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | / | FE3R08N | FE3R10N | FE3R12N |
|---|---|---|---|---|
| Load capacity/rated load | kg | 800 | 1000 | 1200 |
| Load Center | mm | 500 | 500 | 500 |
| Service weight incl. battery | kg | 1800 | 1910 | 2080 |
| Lift height | mm | 3000 | 3000 | 3000 |
| Fork dimensions (s/e/l) | mm / | 35/100/920 | 35/100/920 | 35/100/920 |
| Turning radius | mm | 1160 | 1320 | 1350 |
| Battery voltage,nominal capacity K5 | V/Ah | 24/280 | 24/420 | 24/420 |
| Optional Battery | V/Ah | 24/360/400 | 24/480/540 | 24/480/540 |
