Noblelift · Forklifts

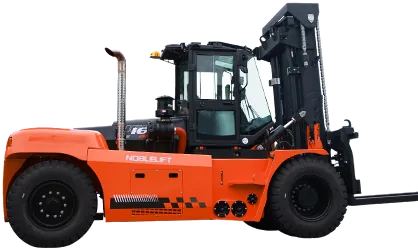

CPCD160/CPCD140L-180L
A Series IC Forklift
- Load capacity/rated load14000 / 16000 / 18000 kg
- Lift height4000/3000 / 4000 mm
- Overall length / （Including cargo fork）7605 / 7010 / 7860 mm
- Travel speed,laden/unladen28 / 30 / 27.5 / 30 / 27 / 29 km/h
- Load centre distance1200 / 900 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the CPCD160/CPCD140L-180L range. Ask us for the signed specification sheet with your quotation.
| Manufacturer‘s type designation | / | CPCD140L | CPCD140L | CPCD160 | CPCD160 | CPCD160L | CPCD160L | CPCD180L | CPCD180L |
|---|---|---|---|---|---|---|---|---|---|
| Load capacity/rated load | kg | 14000 | 14000 | 16000 | 16000 | 16000 | 16000 | 18000 | 18000 |
| Load centre distance | mm | 1200 | 1200 | 900 | 900 | 1200 | 1200 | 1200 | 1200 |
| Lift height | mm | 4000/3000 | 4000/3000 | 4000/3000 | 4000/3000 | 4000/3000 | 4000/3000 | 4000 | 4000 |
| Fork dimensions | s/e/l(mm) | 2400/250/100 | 2400/250/100 | 1800/250/100 | 1800/250/100 | 2400/250/105 | 2400/250/105 | 2400/250/105 | 2400/250/105 |
| Overall length / （Including cargo fork） | mm | 7605 | 7605 | 7010 | 7010 | 7860 | 7860 | 7860 | 7860 |
| Turning radius | mm | 4785 | 4785 | 4785 | 4785 | 5175 | 5175 | 5175 | 5175 |
| Travel speed,laden/unladen | km/h | 28 / 30 | 28 / 30 | 28 / 30 | 28 / 30 | 27.5 / 30 | 27.5 / 30 | 27 / 29 | 27 / 29 |
| Max.Gradient performance,laden/unladen S2 | % | 35 / 35 | 35 / 35 | 35 / 35 | 35 / 35 | 33 / 35 | 33 / 35 | 31 / 35 | 31 / 35 |
| Engine builder | / | VOLVO / （Euro V/EPA T4f） | WEI CHAI / （EuroV） | VOLVO / （Euro V/EPA T4f） | WEI CHAI / （EuroV） | VOLVO / （Euro V/EPA T4f） | WEI CHAI / （EuroV） | VOLVO / （Euro V/EPA T4f） | WEI CHAI / （EuroV） |
| Shifting mode | / | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting | Fully automatic gear shifting |
