Noblelift · Forklifts
CPC(D)50L-100

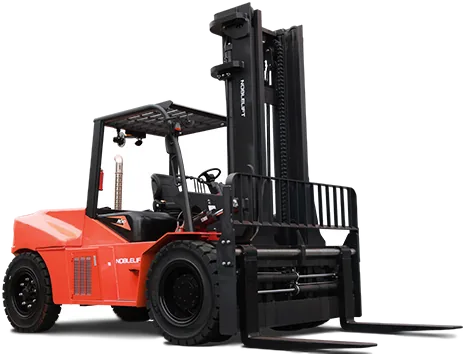

A Series IC Forklift
- Load capacity/rated load5000 / 6000 / 7000 / 8500 kg
- Lift height3000 mm
- Service weight incl8500 / 9050 / 9700 / 12300 kg
- Travel speed,laden/unladen26/28 / 25/28 km/h
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the CPC(D)50L-100 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | / | CPCD50L | CPCD60 | CPCD70 | CPCD85 | CPCD90 | CPCD100 |
|---|---|---|---|---|---|---|---|
| Load capacity/rated load | kg | 5000 | 6000 | 7000 | 8500 | 9000 | 10000 |
| Service weight incl | kg | 8500 | 9050 | 9700 | 12300 | 12700 | 13600 |
| Lift height | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Fork dimensions | s/e/l(mm) | 55x150x1520 | 60x150x1520 | 65x150x1520 | 70x175x1670 | 70x175x1670 | 80x175x1670 |
| Overall length（Including cargo fork） | mm | 5190 | 5190 | 5190 | 5710 | 5710 | 6070 |
| Turning radius | mm | 3350 | 3350 | 3350 | 3700 | 3700 | 3900 |
| Travel speed,laden/unladen | km/h | 26/28 | 26/28 | 25/28 | 26/28 | 26/28 | 26/28 |
| Max.Gradient performance,laden/unladen S2 | % | 25/20 | 25/20 | 25/20 | 21/20 | 21/20 | 21/20 |
| Engine builder | / | Mitsubishi / (Euro IIIA) | Mitsubishi / (Euro IIIA) | Mitsubishi / (Euro IIIA) | Isuzu / （EuroⅠ） | Isuzu / （EuroⅠ） | Isuzu / （EuroⅠ） |
| Service brake | / | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
