Noblelift · Pallet Trucks
PTE15/20Q2

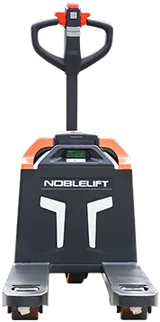

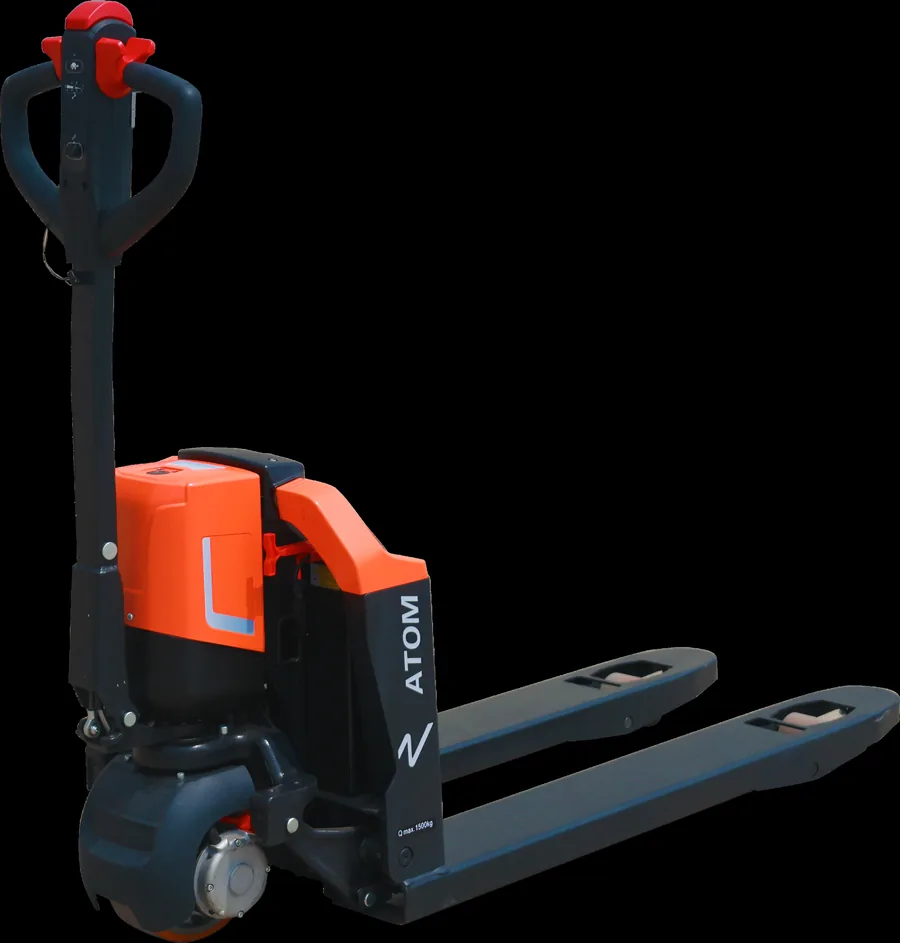

ATOM Lithium Pallet Truck
- Load Capacity / rated load1.5 / 2 t
- Travel speed, laden/ unladen4.4/4.9 / 4.9/4.9 km/h
- Battery voltage, nominal capacity K524 / 20(24 /30；24 / 50) / 48/20 / 24/20(24 / 40) V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the PTE15/20Q2 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer`s type designation | / | PTE15Q2-A | PTE20Q2-A | PTE15Q2-B | PTE20Q2-B |
|---|---|---|---|---|---|
| Load Capacity / rated load | t | 1.5 | 2 | 1.5 | 2 |
| Height of tiller in drive position min. / max. | mm | 715 | 1125 | 715 | 1125 |
| Turning radius | mm | 1332 | 1332 | 1340 | 1340 |
| Travel speed, laden/ unladen | km/h | 4.4/4.9 | 4.9/4.9 | 4.4/4.9 | 4.9/4.9 |
| Battery voltage, nominal capacity K5 | V/Ah | 24 / 20(24 /30；24 / 50) | 48/20 | 24/20(24 / 40) | 48/20 |
