Noblelift · Pallet Trucks

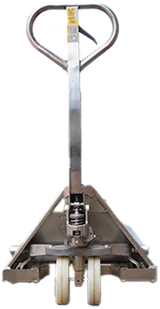

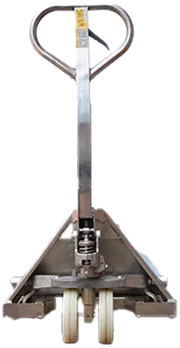

ACS/ACZ-20H/L
Special Pallet Truck
- Capacity Q2000 kg
- Max.fork height h₁200 / 190 mm
- Fork length I1100/1150/1220 mm
- Width overall forks B520/540/685 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the ACS/ACZ-20H/L range. Ask us for the signed specification sheet with your quotation.
| / | / | Galvanized Pallet Truck | Galvanized Pallet Truck | Stainless Pallet Truck | Stainless Pallet Truck |
|---|---|---|---|---|---|
| Item/Type | / | ACZ20H | ACZ20L | ACS20H | ACS20L |
| Capacity Q | kg | 2000 | 2000 | 2000 | 2000 |
| Min.fork height h | mm | 85 | 75 | 85 | 75 |
| Max.fork height h₁ | mm | 200 | 190 | 200 | 190 |
| Size of fork e*s | mm | 160x60 | 160x60 | 160x60 | 160x60 |
| Width overall forks B | mm | 520/540/685 | 520/540/685 | 520/540/685 | 520/540/685 |
| Fork length I | mm | 1100/1150/1220 | 1100/1150/1220 | 1100/1150/1220 | 1100/1150/1220 |
