Noblelift · Pallet Trucks

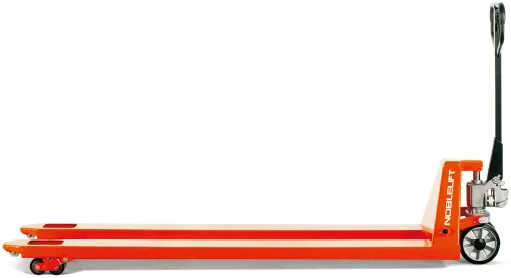

ACE/ACL Series
Special Pallet Truck
- Capacity Q2000 / 3500 kg
- Max.fork height h₁200 / 190 mm
- Fork length1100/1150/1220 / 1500/1800/2000 mm
- Width overall forks838/850/1000 / 540/685 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the ACE/ACL Series range. Ask us for the signed specification sheet with your quotation.
| Item/Type | / | ACE20 | ACE20 | ACL20 | ACL20 | ACL35 | ACL35 |
|---|---|---|---|---|---|---|---|
| Capacity Q | kg | 2000 | 2000 | 2000 | 2000 | 3500 | 3500 |
| Min.fork height h | mm | 85 | 75 | 85 | 75 | 85 | 85 |
| Max.fork height h₁ | mm | 200 | 190 | 200 | 190 | 200 | 200 |
| Size of fork e*s | mm | 160x50 | 160x50 | 160x60 | 160x60 | 160x60 | 160x60 |
| Width overall forks | mm | 838/850/1000 | 838/850/1000 | 540/685 | 540/685 | 540/685 | 540/685 |
| Fork length | mm | 1100/1150/1220 | 1100/1150/1220 | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 | 1500/1800/2000 |
