Noblelift · Forklifts
FE4P16/20Q

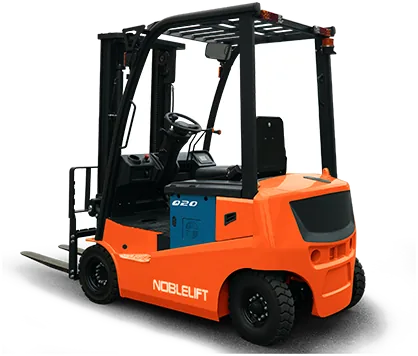

Q Series Electric Forklift
- Load capacity/rated load1600 / 2000 kg
- Lift height3000 mm
- Service weight incl. battery(see line 6.5)2940 / 3180 kg
- Battery voltage,nominal capacity K5Pb-acid:48/360(48/400,48/460) Li:48/200(48/300,48/400) / Pb-acid:48/400(48/460) Li:48/200(48/300,48/400) V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the FE4P16/20Q range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | FE4P16Q | FE4P20Q | |
|---|---|---|---|
| Load capacity/rated load | kg | 1600 | 2000 |
| Service weight incl. battery(see line 6.5) | kg | 2940 | 3180 |
| Lift height | mm | 3000 | 3000 |
| Overall length | mm | 3050 | 3050 |
| Turning radius | mm | 1990 | 1990 |
| Battery voltage,nominal capacity K5 | V/Ah | Pb-acid:48/360(48/400,48/460) Li:48/200(48/300,48/400) | Pb-acid:48/400(48/460) Li:48/200(48/300,48/400) |
