Noblelift · Reach Trucks
CBT15-18

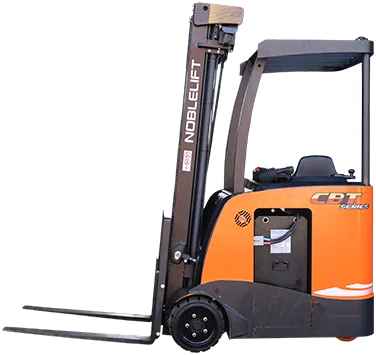

Stand-up Electric Forklift
- Load capacity/rated load1500 / 3307 / 1800 / 4000 kg / lbs
- Lift height6200 / 244.1 / 3000 mm / in
- Service weight4150 / 9149 / 4520 / 9944 kg / lbs
- Battery voltage,nominal capacity K536/700 / 36/900 V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the CBT15-18 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer's type designation | / | CBT15 | CBT15 | CBT18 | CBT18 |
|---|---|---|---|---|---|
| Load capacity/rated load | kg / lbs | 1500 | 3307 | 1800 | 4000 |
| Service weight | kg / lbs | 4150 | 9149 | 4520 | 9944 |
| Lift height | mm / in | 6200 | 244.1 | 3000 | 244.1 |
| Width Overall | mm / in | 1130 | 44.5 | 1130 | 44.5 |
| Turning radius | mm / in | 1406 | 55.4 | 1610 | 63.4 |
| Battery voltage,nominal capacity K5 | V/Ah | 36/700 | 36/700 | 36/900 | 36/900 |
