Noblelift · Electric Stackers
PSE06BCB/NCB

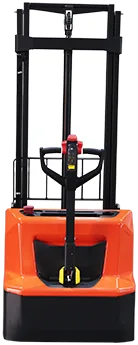

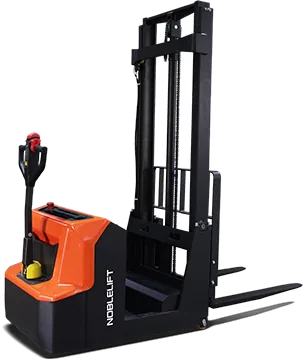

Mini Counterbalanced Stacker
- Load Capacity / rated load0.6 t
- Lift height3200 mm
- Service weight1175 kg
- Travel speed, laden/ unladen4.5/4.7 Km/h
- Battery voltage, nominal capacity K52x12/105 V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the PSE06BCB/NCB range. Ask us for the signed specification sheet with your quotation.
| Manufacturer`s type designation | / | PSE06BCB | PSE06NCB |
|---|---|---|---|
| Load Capacity / rated load | t | 0.6 | 0.6 |
| Service weight | kg | 1175 | 1175 |
| Lift height | mm | 3200 | 3200 |
| Aisle width for pallets 1000X1200 crossways | mm | 2630 | 2630 |
| Travel speed, laden/ unladen | Km/h | 4.5/4.7 | 4.5/4.7 |
| Max. gradeability, laden/ unladen | % | 5/8 | 5/8 |
| Battery voltage, nominal capacity K5 | V/Ah | 2x12/105 | 2x12/105 |
