Noblelift · Electric Stackers
PS12/16/18CB

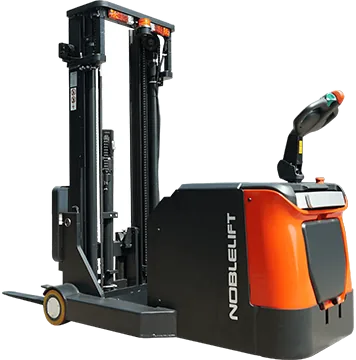

Electric Counterweight Stacker
- Load Capacity / rated load1.2 / 1.6 / 1.8 t
- Lift height4500 mm
- Service weight2165 / 2265 / 2450 kg
- Travel speed, laden/ unladen7/8 / 6/7 Km/h
- Battery voltage, nominal capacity K524/270 / 24/350 V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the PS12/16/18CB range. Ask us for the signed specification sheet with your quotation.
| Manufacturer`s type designation | PS12CB | PS16CB | PS18CB | |
|---|---|---|---|---|
| Load Capacity / rated load | t | 1.2 | 1.6 | 1.8 |
| Service weight | kg | 2165 | 2265 | 2450 |
| Lift height | mm | 4500 | 4500 | 4500 |
| Aisle width for pallets 1000X1200 crossways | mm | 3110 | 3210 | 3360 |
| Travel speed, laden/ unladen | Km/h | 7/8 | 7/8 | 6/7 |
| Max. gradeability, laden/ unladen | % | 6/15 / | 6/15 | 6/15 |
| Battery voltage, nominal capacity K5 | V/Ah | 24/270 | 24/270 | 24/350 |
