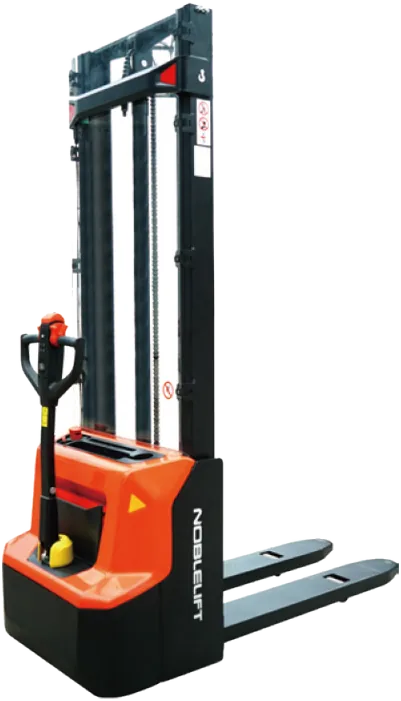

Noblelift · Electric Stackers
PSE12B/12N/12BD/12ND
EDGE Series Stacker
- Load Capacity / rated load1200 kg
- Lift height3600 mm
- Service weight650 / 620 / 740 / 710 kg
- Travel speed, laden/ unladen4.2/4.5 Km/h
- Battery voltage, nominal capacity K52x12/85 / 24/60 V/Ah
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the PSE12B/12N/12BD/12ND range. Ask us for the signed specification sheet with your quotation.
| Manufacturer`s type designation | / | PSE12B | PSE12N | PSE12BD | PSE12ND |
|---|---|---|---|---|---|
| Load Capacity / rated load | kg | 1200 | 1200 | 1200 | 1200 |
| Service weight | kg | 650 | 620 | 740 | 710 |
| Lift height | mm | 3600 | 3600 | 3600 | 3600 |
| Aisle width for pallets 1000X1200 crossways | mm | 2167 | 2167 | 2241/2192 | 2241/2192 |
| Travel speed, laden/ unladen | Km/h | 4.2/4.5 | 4.2/4.5 | 4.2/4.5 | 4.2/4.5 |
| Max. gradeability, laden/ unladen | % | 5/10 | 5/10 | 5/10 | 5/10 |
| Battery voltage, nominal capacity K5 | V/Ah | 2x12/85 | 24/60 | 2x12/85 | 24/60 |
