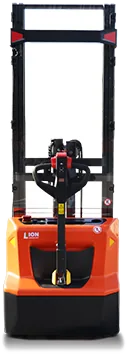

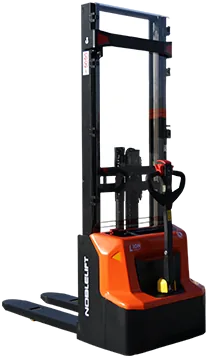

Pedestrian Electric Stacker
1.27T – 1.3T
Noblelift model ref: SWB-130/130S/130D
- Capacity
- 1,270–1,300 kg
- Power
- Battery-electric, 24 V
- Use
- Indoor, level floors
- Lift height
- 3,510 mm
Prefer email? info@pristinemh.com · Mon–Fri, 8am–4pm
See the Pedestrian Stackers range · Mast, battery and attachments are confirmed when we quote.
- 12-month parts and labour warranty as standard
- Finance through funding partners, subject to status
- Part-exchange of your existing equipment
- Delivery, handover and operator familiarisation
About the Pedestrian Electric Stacker
The Pedestrian Electric Stacker (Noblelift SWB-130/130S/130D) is a walkie stacker for lifting pallets into racking, in a narrower aisle than the L Series and N Series Pedestrian Stackers need. Its variants share the same lift height and travel speed, with small differences in rated load and aisle width. Send us the narrowest aisle it has to turn in and your heaviest pallet weight, and we'll match the variant.
Specifications
Noblelift's figures for each model in the range. Your quotation includes the full specification sheet for the build you choose.
| Model | SWB130 | SWB-130S | SWB-130D |
|---|---|---|---|
| Load capacity (t) | 1.3 | 1.27 | 1.3 |
| Service weight (kg) | 670 | 835 | 745 |
| Lift height (mm) | 3510 | 3510 | 3510 |
| Aisle width, 1000 × 1200 crossways (mm) | 2167 | 2228 | 2244 / 2196 |
| Travel speed, laden / unladen (km/h) | 4.2 / 4.5 | 4.2 / 4.5 | 4.2 / 4.5 |
| Gradeability, laden / unladen (%) | 4/10 | 4/10 | 4/10 |
| Battery voltage / capacity, K2 (V / Ah) | 24/100 | 24/100 | 24/100 |
