Noblelift · Reach Trucks
VDE-160

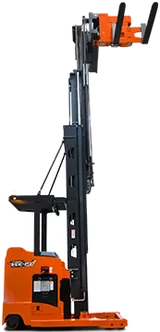

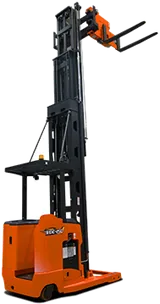

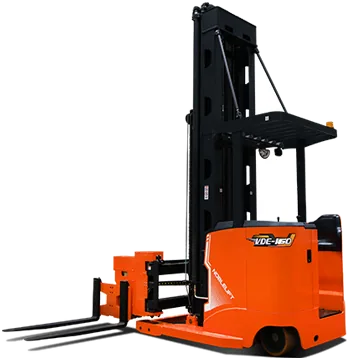

Very Narrow Aisle Standing Stacker
- Load capacity1600 / 3520 kg / lb
- Lift height9250 / 364.2 mm / in
- Battery voltage nominal capacity K548/450 V/Ah
- Aisle width for pallets 1200 x 8001600 / 63 mm / in
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the VDE-160 range. Ask us for the signed specification sheet with your quotation.
| Model | / | VDE-160 | VDE-160 |
|---|---|---|---|
| Unit type | / | Very Narrow Aisle Standing Stacker | Very Narrow Aisle Standing Stacker |
| Load capacity | kg / lb | 1600 | 3520 |
| Load center | mm / in | 600 | 23.6 |
| Free lift | mm / in | 3250 | 128 |
| Lift height | mm / in | 9250 | 364.2 |
| Reach, lateral | mm / in | 1320 | 52 |
| Turning radius | mm / in | 1950 | 76.8 |
| Aisle width for pallets 1200 x 800 | mm / in | 1600 | 63 |
| Battery voltage nominal capacity K5 | V/Ah | 48/450 | 48/450 |
