Noblelift · Reach Trucks

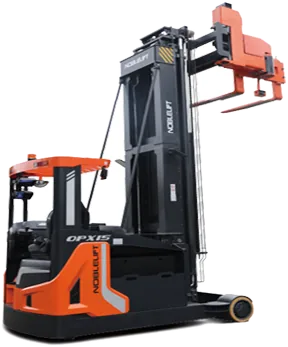

OPX15
Very Narrow Aisle tri-lateral Stacker
- Load Capacity / rated load1500 kg
- Lift height5500/6500/7500/8500/9500/10500/11500/12500/13000 mm
- Overall width1270/1520 mm
- Battery voltage, nominal capacity K548/900 V/Ah
- Aisle width for pallets 1200×8001700 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the OPX15 range. Ask us for the signed specification sheet with your quotation.
| Model | / | OPX15 |
|---|---|---|
| Load Capacity / rated load | kg | 1500 |
| Lift height | mm | 5500/6500/7500/8500/9500/10500/11500/12500/13000 |
| Overall width | mm | 1270/1520 |
| Aisle width for pallets 1200×800 | mm | 1700 |
| Turning radius | mm | 2100 |
| Battery voltage, nominal capacity K5 | V/Ah | 48/900 |
