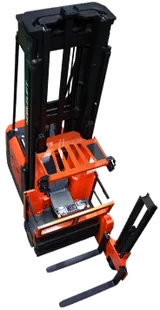

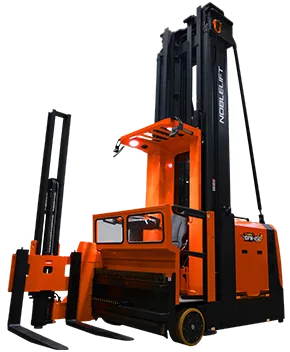

9.5 m Lift VNA Tri-lateral Stacker
1.6T
Noblelift model ref: OPK-160
- Capacity
- 1,600 kg
- Power
- Battery-electric, 80 V
- Use
- Indoor, very narrow aisles
- Lift height
- 9,500 mm
- Turning radius
- 2,220 mm
Prefer email? info@pristinemh.com · Mon–Fri, 8am–4pm
See the VNA Trucks range · Mast, battery and attachments are confirmed when we quote.
- 12-month parts and labour warranty as standard
- Finance through funding partners, subject to status
- Part-exchange of your existing equipment
- Delivery, handover and operator familiarisation
About the 9.5 m Lift VNA Tri-lateral Stacker
The 9.5 m Lift VNA Tri-lateral Stacker (OPK-160) is a Noblelift very narrow aisle truck that reaches sideways into the racking, so it does not turn to face the rack. Compared with the VNA Standing Stacker, it needs a wider aisle and gives more free lift. Send us your racking drawing, with aisle widths and top beam height, and we'll check the fit.
Specifications
Noblelift's figures for each model in the range. Your quotation includes the full specification sheet for the build you choose.
| Model | OPK-160 | OPK-160 |
|---|---|---|
| Truck type | Very Narrow Aisle tri-lateral Stacker | Very Narrow Aisle tri-lateral Stacker |
| Load capacity (kg / lb) | 1600 | 3520 |
| Load centre (mm / in) | 600 | 23.6 |
| Free lift (mm / in) | 3760 | 148 |
| Lift height (mm / in) | 9500 | 374 |
| Reach, lateral (mm / in) | 1320 | 52 |
| Turning radius (mm / in) | 2220 | 87.4 |
| Aisle width, 1200 × 800 (mm / in) | 1700 | 67 |
| Battery voltage / capacity (V / Ah) | 80 / 620 | 80 / 620 |
