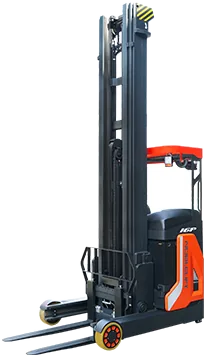

B Series Reach Truck
1.6T – 2T
Noblelift model ref: RT16/20B
- Capacity
- 1,600–2,000 kg
- Power
- Battery-electric, 48 V
- Use
- Best Value
- Lift height
- 9,500 mm
- Turning radius
- 1,650–1,750 mm
Prefer email? info@pristinemh.com · Mon–Fri, 8am–4pm
See the Best Value range · Mast, battery and attachments are confirmed when we quote.
- 12-month parts and labour warranty as standard
- Finance through funding partners, subject to status
- Part-exchange of your existing equipment
- Delivery, handover and operator familiarisation

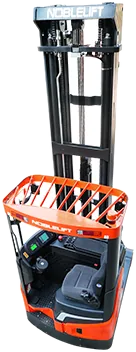

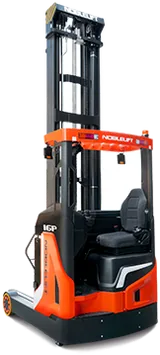

About the B Series Reach Truck
The B Series Reach Truck (RT16/20B) is the Noblelift sit-on reach truck we'd suggest from our Best Value range for higher racking. The RT16B takes a 420 Ah or 560 Ah battery and the RT20B a 560 Ah one. Send us the weight of your heaviest pallet and the clear width of your aisles, and we'll tell you which of the two fits.
Specifications
Noblelift's figures for each model in the range. Your quotation includes the full specification sheet for the build you choose.
| Model | RT16B | RT20B |
|---|---|---|
| Load capacity (kg) | 1600 | 2000 |
| Tilt of fork, forward / backward (°) | 4°/-2° | 4°/-2° |
| Lift height (mm) | 9500 | 9500 |
| Overall width (mm) | 1270 | 1270 |
| Aisle width, 1000 × 1200 crossways (mm) | 2720 | 2840 |
| Turning radius (mm) | 1650 | 1750 |
| Battery voltage / capacity (V / Ah) | 48/420,560 | 48/560 |
Other reach trucks
See also: Reach trucks · Very narrow aisle trucks

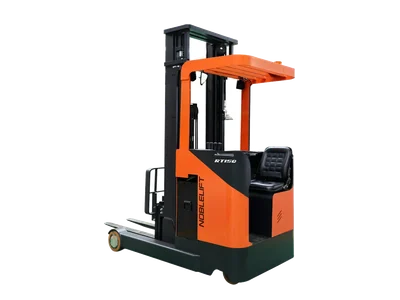

Q Series Reach Truck
1.5T
- Product codeRT15Q
- PowerBattery-electric
- UseBest Value

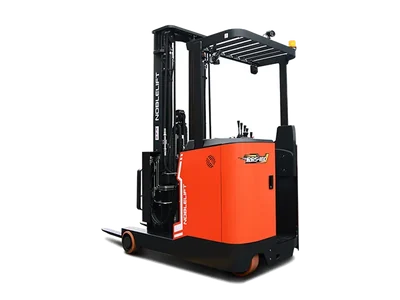

Stand-on Reach Truck
1.5T – 1.8T
- Product codeRRS-150/180
- PowerBattery-electric
- UseBest Value

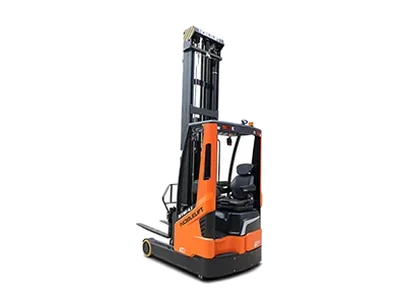

Lithium Reach Truck
1.6T
- Product codeRT16Li
- PowerLithium-ion
- UseHigh Performance

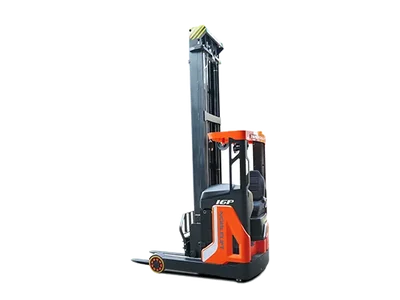

Pro Series Reach Truck
