Noblelift · Reach Trucks

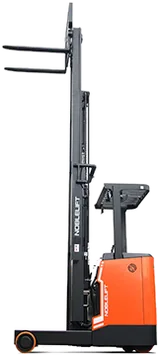

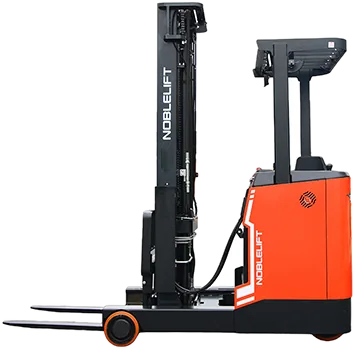

RRS-150/180
Stand-on Reach Truck
- Load capacity / rated load1500 / 1800 kg
- Overall length2085 mm
- Overall width1090 mm
- Battery voltage, nominal capacity K548 / 280 / 48 / 375 V/Ah
- Aisle width for pallets 1100 x 11002650 / 2700 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the RRS-150/180 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer | / | RRS-150 | RRS-180 |
|---|---|---|---|
| Load capacity / rated load | kg | 1500 | 1800 |
| Lift | mm | 6000 | 6000 |
| Overall length | mm | 2085 | 2085 |
| Overall width | mm | 1090 | 1090 |
| Turning radius | mm | 1605 | 1755 |
| Aisle width for pallets 1100 x 1100 | mm | 2650 | 2700 |
| Travel speed, load/unload | km/h | 9.5 / 9.5 | 9.5 / 9.5 |
| Lift speed, load/unload | mm/s | 0.30 / 0.56 | 0.30 / 0.56 |
| Max. gradeability, load/unload | % | 10 / 10 | 10 / 10 |
| Drive motor rating S2 60 min | kW | 4.9 | 4.9 |
| Lift motor rating S3 15% | kW | 8 | 8 |
| Battery voltage, nominal capacity K5 | V/Ah | 48 / 280 | 48 / 375 |
