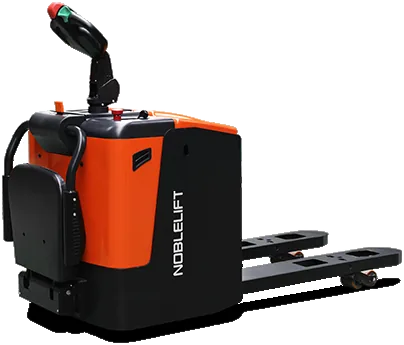

Noblelift · Pallet Trucks
PPK-200/250/300
High-speed Lithium Pallet
- Load Capacity / rated load2.0 / 2.5 / 3.0 t
- Overall length1950 / 2383 / 2443 mm
- Overall width790 mm
- Battery voltage, nominal capacity K524V/150 (200) V/Ah
- Aisle width for pallets 800X1200 lengthways2485 / 2915 / 2975 mm
Supplied by Pristine Material Handling, authorised Noblelift dealer. Mast, battery and attachment options are configured to your site at quotation stage.
Full specifications
Technical data
Manufacturer data for every variant in the PPK-200/250/300 range. Ask us for the signed specification sheet with your quotation.
| Manufacturer`s type designation | / | PPK-200 | PPK-200 | PPK-200 | PPK-250 | PPK-250 | PPK-250 | PPK-300 | PPK-300 | PPK-300 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer`s type designation | / | Foldable / Platform | Enclosed / fixed Platform | Fixed / Platform | Foldable / Platform | Enclosed / fixed Platform | Fixed / Platform | Foldable / Platform | Enclosed / fixed Platform | Fixed / Platform |
| Operator type | / | Stand | Stand | Stand | Stand | Stand | Stand | Stand | Stand | Stand |
| Load Capacity / rated load | Q(t) | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.0 |
| Tire size,front | mm | φ250X80 | φ250X80 | φ250X80 | φ250X80 | φ250X80 | φ250X80 | φ250X80 | φ250X80 | φ250X80 |
| Overall length | mm | 1950 | 2383 | 2443 | 1950 | 2383 | 2443 | 1950 | 2383 | 2443 |
| Overall width | mm | 790 | 790 | 790 | 790 | 790 | 790 | 790 | 790 | 790 |
| Aisle width for pallets 800X1200 lengthways | mm | 2485 | 2915 | 2975 | 2485 | 2915 | 2975 | 2485 | 2915 | 2975 |
| Turning radius | mm | 1780 | 2210 | 2270 | 1780 | 2210 | 2270 | 1780 | 2210 | 2270 |
| Travel speed, laden/ unladen | Km/h | 9/12 | 9/12 | 9/12 | 8/9 | 8/9 | 8/9 | 6/7 | 6/7 | 6/7 |
| Max. gradeability, laden/ unladen | % | 8/15 | 8/15 | 8/15 | 6/15 | 6/15 | 6/15 | 6/15 | 6/15 | 6/15 |
| Battery voltage, nominal capacity K5 | V/Ah | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) | 24V/150 (200) |
